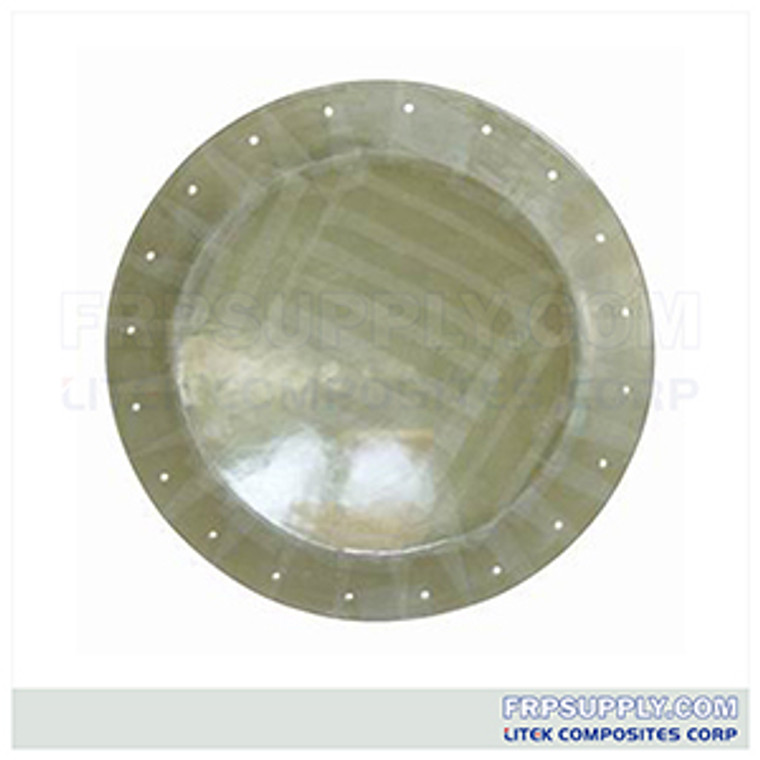

FRP Manhole Cover (DIN)

FRP Manhole Cover (DIN)

Contact us for more details.

(No reviews yet)
Current Stock:
Description
  • Manufactured to conform to DIN and PS 15-69.
  • 1 C-veil (30g/m2) + 2 Mat (450g/m2) 2.5mm(100mil) resin rich corrosion liner.
  • Hand layup, integral type construction, woven roving used continuously from flange face to hub.
  • Uniform external surface and stub outside diameter stub end surface prepared for immediate bonding.
  • Bolt holes of drilled flanges are spot-faced and coated with resin.
  • Available in Vinyl Ester Resin, Derakane Momentum 411-350, 470-300  & Basic Vinyl Ester. Supply using other resin systems possible.
  • MEKP cure system.




FRP Manhole Cover DIN Standard (unit: mm)

Flange
Nominal Size
DN		 Working
Pressure
bar		 Cover
Diameter
D		 Bolt Circle
Diameter
C		 No. of Bolt
Hole Size
n x d2		 Flange ID
d

Cover
Thickness
T

 Cover
Thickness
t		 Cover Height
m
DN500 2.5 645 600 20 x 18 DN530 15 6 80
DN600 2.5 780 725 20 x 18 DN640 25 6 80
DN600 6 780 725 20 x 26 DN640 52 8 80
DN800 2.5 1015 950 24 x 18 DN840 30 6 80
DN800 6 1015 950 24 x 33 DN840 60 8 80
