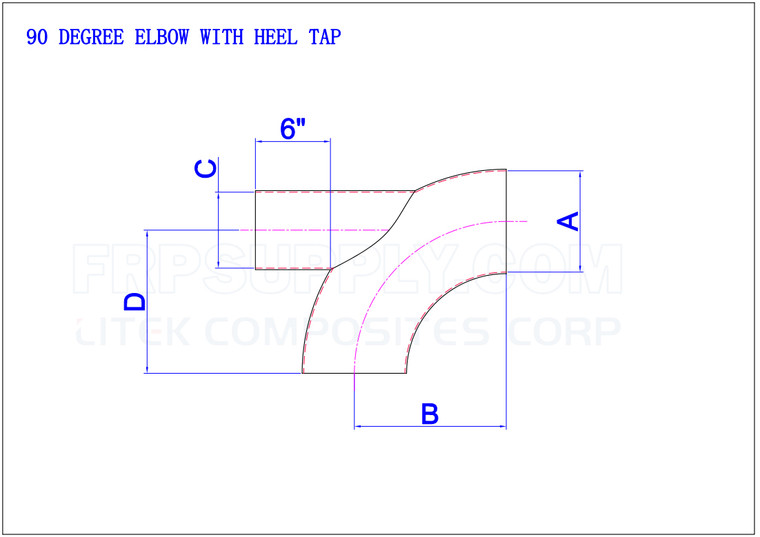

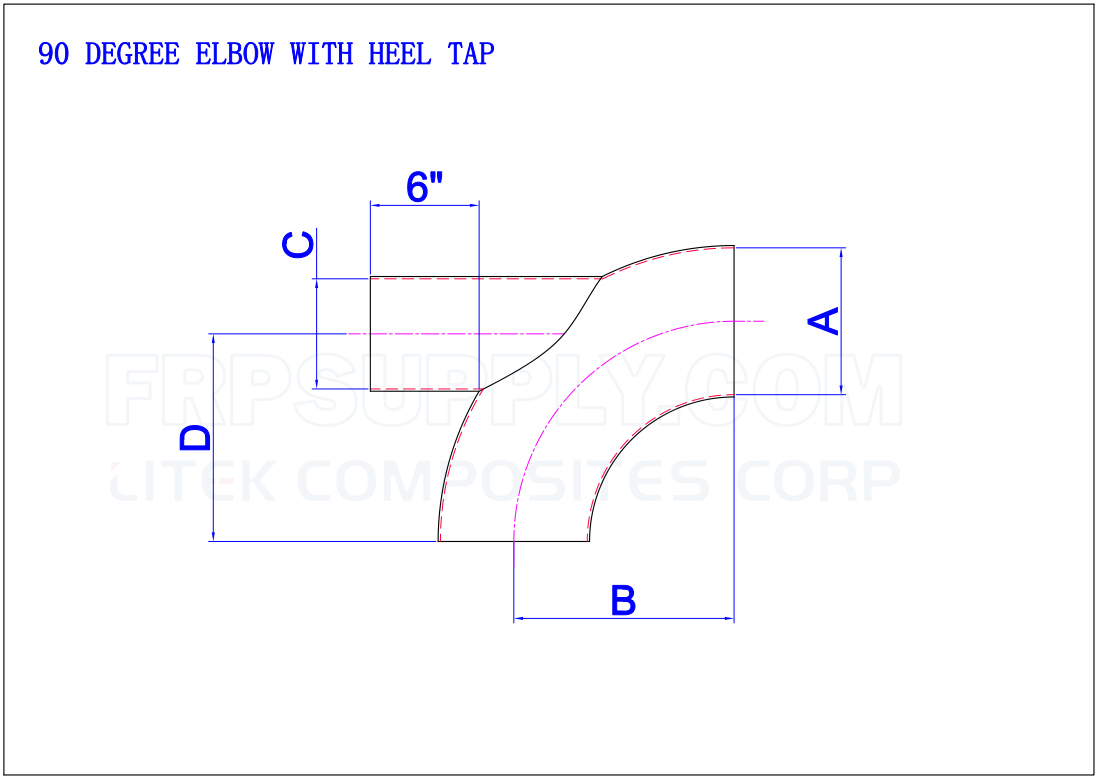

90 Degree Elbow With Heel Tap

90 Degree Elbow With Heel Tap

$0.00
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description





Diameter
( A )
inch
4
6
8
10
12
14
16
18
20
22
24
Radius
( B )
inch
6
9
12
15
18
21
24
27
30
33
36
Diameter
( C )
inch
To be Specify
To be Specify
To be Specify
To be Specify
To be Specify
To be Specify
To be Specify
To be Specify
To be Specify
To be Specify
To be Specify
Length
( D )
inch
5.656
8.484
11.312
14.140
16.968
19.796
22.624
25.452
28.280
31.108
33.936
Duct
Thickness
inch
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.125
0.187
