FRP Elbow (JIS)

Contact us for more details.

(No reviews yet) Write a Review
  • Manufactured to conform to JIS standards.
  • Nexus and/or C-veil (30g/m2) + 2 mat (450g/m2) resin rich liner.
  • Hand laid up one piece construction.
  • Standard inventory available in Vinyl Ester Resin Showa 802. Supply using other brand(s) Vinyl Ester Resin possible.

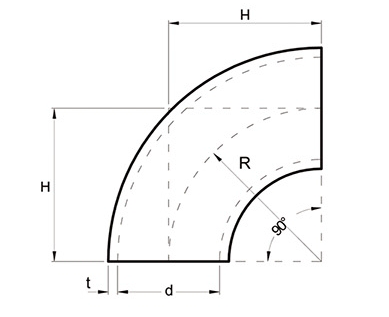

JIS 10K Standard. (unit:mm)

Nominal Size 15A 20A 25A 32A 40A 50A
t 5 5 5 5 5 5
H 22.5 30 37.5 48 60 75
Weight (Kg) 0.02 0.03 0.05 0.07 0.1 0.17
Nominal Size 65A 80A 100A 125A 150A 200A
t 5 5 5 5 5 6
H 97.5 120 150 187.5 225 300
Weight (Kg) 0.28 0.42 0.81 1.15 1.67 3
Nominal Size 250A 300A 350A
t 6 6 6
H 375 450 525
Weight (Kg) 4.5 6.1 9.5
