- Manufactured in accordance with JIS standards.
- 2.5mm(100mil) Nexus and/or C-veil (30g/m2) + 2 mat (450g/m2) resin rich corrosion liner.
- 54 to 56 degress Helecal Winding for maximum strength suitable for high working pressure.
- C-veil (30g/m2) + Mirror shine Glossy exterior finishing for extra weathering and corrosion protection.

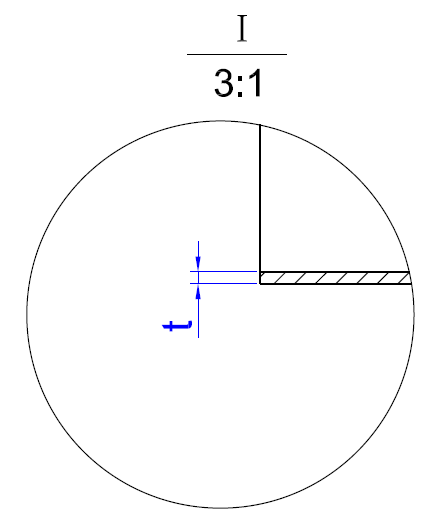

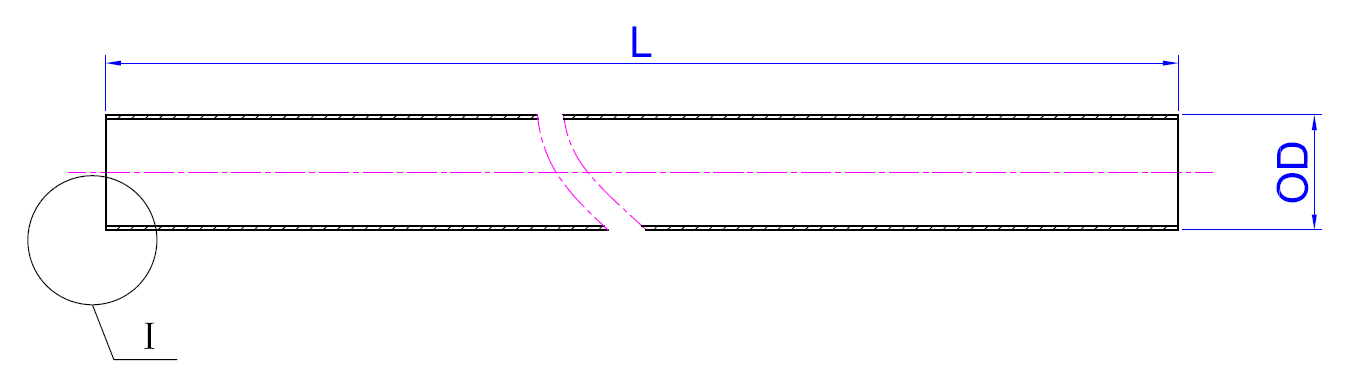

JIS 10K Standard. (unit: t:mm; L:M)
| Nominal Size |
50A |
65A |
80A |
100A |
125A |
150A |
200A |
250A |
300A |
350A |
| t |
5 |
5 |
5 |
5 |
5 |
5 |
6 |
6 |
5 |
6 |
| L |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
| Weight (Kg) |
3 |
3.5 |
4.3 |
5.3 |
6.6 |
8 |
13 |
17 |
19.85 |
24 |
