- Manufactured in accordance with DIN and PS 15-69.
- 2.5mm(100mil) 1 C-veil (30g/m2) + 2 mats (450g/m2) resin rich corrosion liner.
- 10 Bar(150psi) ratings are suitable for operating temperatures to 104 ???(220 ???).
- Uniform thickness and 2.5mm(100mil) resin rich laid up suitable for high corrosion but lower working pressure application.
- C-veil (30g/m2) + UV inhibitor with resin(no wax) top coat for superior corrosion resistance.

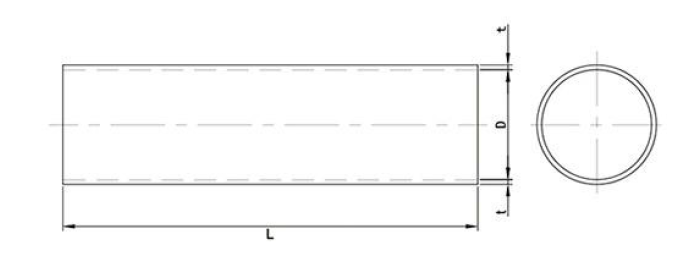

ID | D +/-1 (mm) | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 |
Wall Thickness t(mm)+1/-0 | 10Bar | X | X | X | X | 5 | 5 | 5 | 6.5 |
Weight | KG | X | X | X | X | 4.25 | 5.35 | 6.5 | 10.25 |
Wall Thickness t(mm)+1/-0 | 16Bar | 5 | 5 | 5 | 5 | 6.5 | 6.5 | 6.5 | 8 |
Weight | KG | 1.3 | 2.05 | 2.65 | 3.45 | 5.55 | 6.95 | 8.5 | 12.8 |
Pipe Length | L +5/-0 (mm) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
