FRP Equal Tee (DIN)

Contact us for more details.

(No reviews yet) Write a Review
  • Manufactured to conform to DIN and PS 15-69.
  • 1 C-veil (30g/m2) + 2 mats (450g/m2) resin rich corrosion liner.
  • Hand laid one piece construction.
  • Available in Vinyl Ester Resin, Derakane Momentum 411-350, 470-300  & Basic Vinyl Ester. Supply using other resin systems possible.

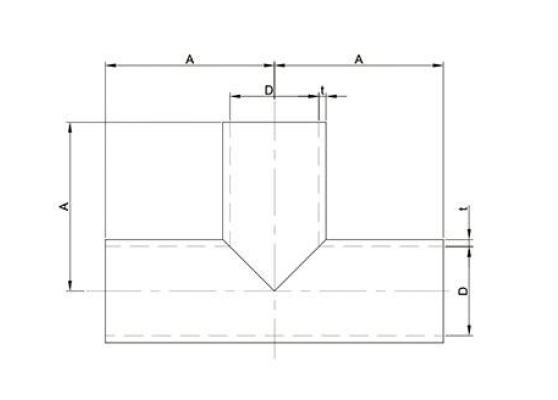

Norminal Diameter D (mm) 25 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600

Wall Thickness

t (+1/-0)

10Bar x x x x 5 5 5 6.5 8 9.5 9.5 11 12.5 12.5 14 16

Weight

KG x x x x 1.1 1.54 2.13 3.67 7.11 12.17 16.48 25 35.78 41.66 53.78 78.92

Wall Thickness

t (+1/-0)

16Bar 5 5 5 5 6.5 6.5 6.5 8 11 13.5 13.5 16 18.5 18.5 21 24

Weight

KG 0.25 0.43 0.62 0.84 1.46 2.03 2.8 4.55 10 17.56 23.72 36.73 53.73 62.46 81.76 120
A (mm) 110 125 150 160 175 200 225 250 300 350 400 450 500 525 550 600
Weight:
1.00 LBS
