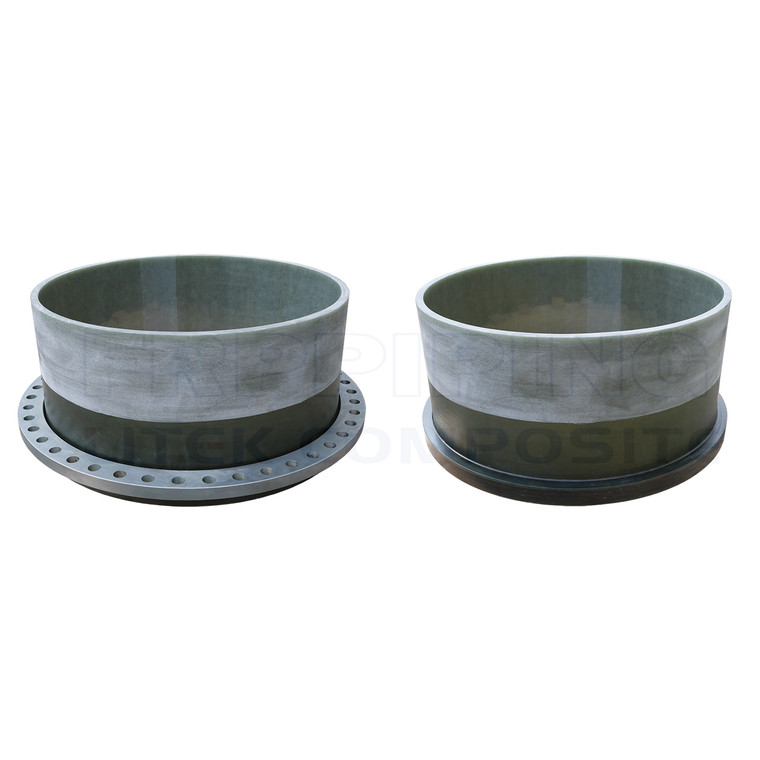

Vanstone Flange

Vanstone Flange

$34.68
(No reviews yet)
Current Stock:
Adding to cart… The item has been added
Description



  • Manufactured to conform to PS 15-69 & ASTM D5421

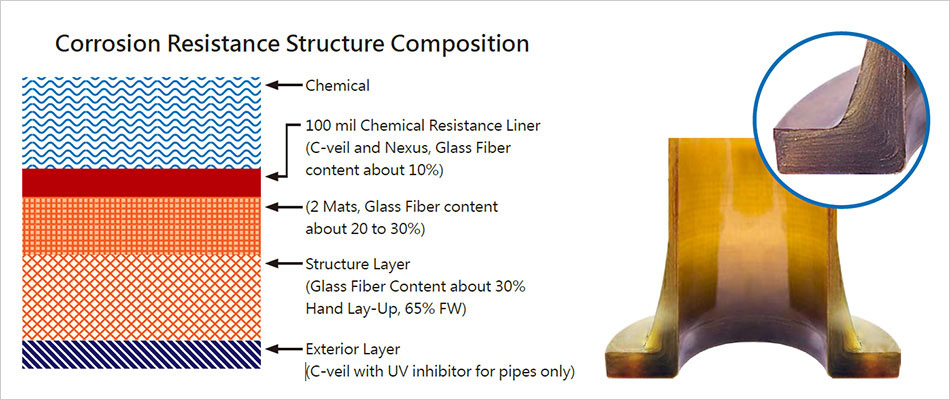

  • C-veil and Nexus + 2 Mats 100mil resin rich corrosion liner
  • Hand laid, integral type construction, woven roving used continuously from flange face to hub for 3 inches size and larger
  • Uniform external surface and stub end surface prepared for immediate bonding
  • Standard inventory available in Vinyl Ester Resin, Derakane Momentum 411-350,470-300, 510C-350 & Hetron 922. To supply equivalent resin system can be available upon request
  • MEKP (C + N Liner) & BPO (C + 2N Liner) cure systems


Nominal Diameter
( ID )
Pressure Rating
Stub Thickness
( t )
Stub Length
( L )
Flange Thickness
( W )
Flange Diameter
X( +0/-2 )
Hub OD
Y( +0/-2 )
Hub Length
( h )
inch
psi
inch
inch
inch
inch
inch
inch
1/2
150
3/16
9
5/8
1- 5/8
1- 1/4
2- 1/2
3/4
150
3/16
9
5/8
2
1- 1/2
2- 1/2
1
150
3/16
9
5/8
2- 3/8
1- 3/4
2- 1/2
1- 1/2
150
3/16
9
11/16
3- 1/8
2- 1/8
2- 3/4
2
150
1/4
9
11/16
4
3
2- 3/4
2- 1/2
150
1/4
9
3/4
4- 5/8
3- 1/2
3
3
150
1/4
9
13/16
5- 1/4
4- 1/4
3- 1/4
4
150
1/4
9
15/16
6- 3/4
5- 1/4
3- 3/4
5
150
3/8
9
1
7- 1/2
6- 1/2
4
6
150
3/8
9
1- 1/16
8- 5/8
7- 5/8
4- 1/4
8
150
7/16
9
1- 1/4
10- 7/8
9- 7/8
5
10
150
1/2
10
1- 7/16
13- 1/4
12
5- 3/4
12
150
5/8
10
1- 3/4
16
14 5/8
7
14
150
3/4
12
1- 7/8
17- 5/8
16- 1/2
7- 1/2
16
150
13/16
12
2
20- 1/8
18- 3/4
7
18
150
7/8
12
2- 1/4
21- 1/2
20- 1/4
7- 7/8
20
150
15/16
12
2- 7/16
23- 3/4
22- 3/8
7- 5/16
24
150
1- 1/8
12
2- 13/16
28- 1/8
26- 3/4
8- 7/16
30
150
1- 3/8
12
3
34- 5/8
33
7- 1/2
36
150
1- 5/8
12
3- 1/2
41- 1/8
39- 1/4
8- 3/4
