FRP Butt-Joint Fiberglass kit (resin sold separately)

$17.80
(1 review) Write a Review

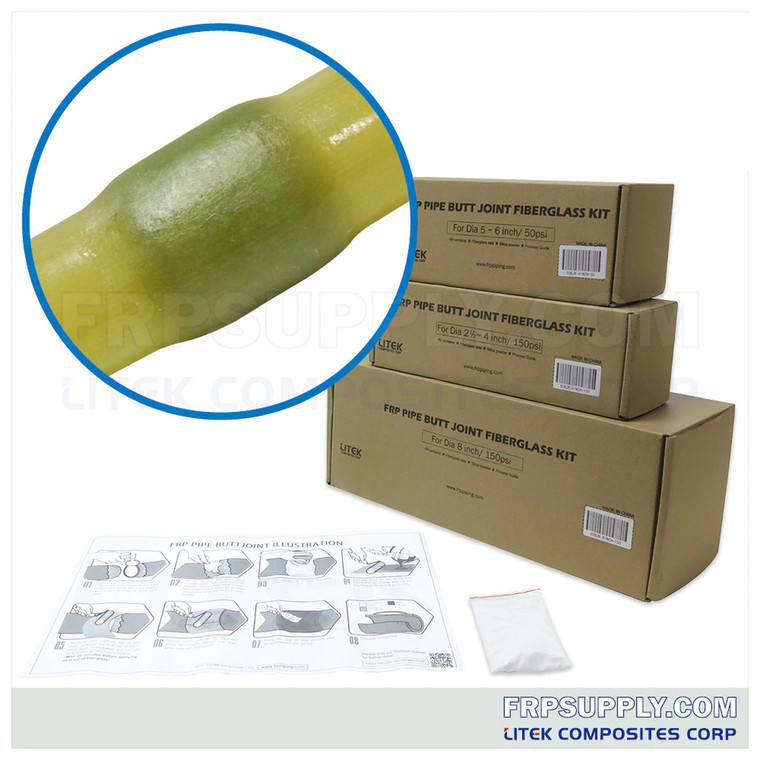

FRP Butt Joint Fiberglass Kit is a package of fiberglass strips precut for FRP technician on the field or shop as ready use Fiberglass reinforcement to fabricate Butt Joint FRP Pipes and Fittings lamination without going through time consumed preparation of cutting different types and sizes of Fiberglass material.

The specifications meet PS 15-69 "Custom Contact-Molded Reinforced Polyester Chemical- ResistantProcess Equipment" minimum total width.It is for customer's option to select suitable pressure type of kits for joining both FRP Hand-Lay and FW piping system. All fiberglass materials are the highest quality commercial grade meet FRP industry and Marine standard. It can work with almost all types of Unsaturated Polyester and Epoxy resin.

Package includes

  • Fiberglass layer sets
  • A pack of Silica powder
  • Installation guide/ Data sheet
  • Desiccant



FRP Pipe Butt Joint Lay-Up Sequence and Dimension Table

Diameter
Pressure
Rate
Product
Thickness
Joint
Thickness
Interior
Width
(C+N+2M)
Structural
Width
Structural
Width
(C)
Exterior
Width
(Each end)
Length
Lamination Layer
C=C-veil, N=Nexus
M=Chopped Strand Mat ( 1.5 oz / ft2 )
R=Woven Roving ( 24 oz / yd2 )
inch
psi
inch
inch
inch
inch
inch
inch
inch
2
150
1/4
5/16
5
6
7
3 3/4
9 1/2
CNMM+MMM+MMM+MMC
4
150
1/4
5/16
5
6
7
3 3/4
17
CNMM+MRMM+MRMMC
6
50
3/16
1/4
4
5
6
3 1/4
24
CNMM+MRMM+MMC
150
3/8
7/16
7
8
9
4 3/4
25
CNMM+MRMM+MRMM+MRMMC
8
50
1/4
5/16
5
6
7
3 3/4
32
CNMM+MRMM+MRMMC
150
7/16
1/2
8
9
10
5 1/4
33
CNMM+MRMM+MRMM+MRMM+MMC
10
50
1/4
5/16
5
6
7
3 3/4
40
CNMM+MRMM+MRMMC
150
1/2
5/8
10
11
12
6 1/4
42
CNMM+MRMM+MRMM+MRMM+MRMMMC
12
50
1/4
5/16
5
6
7
3 3/4
47
CNMM+MRMM+MRMMC
150
5/8
11/16
11
12
13
6 3/4
50
CNMM+MRMM+MRMM+MRMM+MRMM+MMMC

PDF file Download FRP Pipe Butt-Joint Fiberglass Kit Product Instruction (6.5MB)

Weight:
1.00 LBS
